Product Description

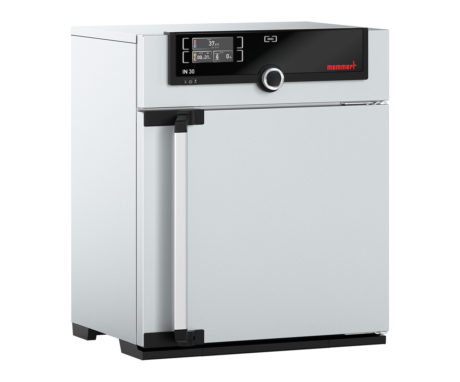

Lab oven for universal use
Whatever you want to perform: material tests, ageing of computer chips, run complex experiments with highly sensitive loads, drying or tempering electronic components, hardening plastic resin or heating plasticine. The Memmert U universal heating oven / drying oven stands for unparalleled precise, even and gentle temperature control.
- Temperature range up to +300 °C
- 9 model sizes (32 to 1060 litres volume)
- 2 model variants: SingleDISPLAY and TwinDISPLAY
- Natural convection or forced air circulation N/F
| Model sizes/Description | 30 | 55 | 75 | 110 | 160 | 260 | 450 | 750 | 1060 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Volume, approx. l | 32 | 53 | 74 | 108 | 161 | 256 | 449 | 749 | 1060 | |||||||||
| Width, (A) mm | 400 | #colspan# | 560 | 640 | 1040 | |||||||||||||
| Height, (B) mm | 320 | 400 | 560 | 480 | 720 | 800 | 720 | 1200 | ||||||||||
| Depth (less 39 mm for fan), (C) mm | 250 | 330 | 400 | 500 | 600 | 850 | ||||||||||||
| Max. number of grids/shelves, number | 3 | 4 | 6 | 5 | 8 | 9 | 8 | 14 | ||||||||||
| Max. loading per grid/shelf, kg | 20 | 30 | 60 | |||||||||||||||
| Max. loading of chamber | 60 | 80 | 120 | 175 | 210 | 300 | ||||||||||||
| Max. loading per slide-in drip tray, kg | 1,5 | 3 | 4 | 8 | ||||||||||||||
| Max. loading per bottom drip tray, kg | 1,5 | 3 | 4 | 8 | ||||||||||||||
| Width, (D) mm | 585 | 745 | 824 | 1224 | ||||||||||||||
| Height (size 450, 750, 1060 withcastors), (E) mm | 704 | 784 | 944 | 864 | 1104 | 1183 | 1247 | 1720 | ||||||||||
| Depth (without door handle), doorhandle + 56 mm, (F) mm | 434 | 514 | 584 | 684 | 784 | 1035 | ||||||||||||
| Stainless steel grids, electropolished, number | 1 | 2 | 1 | |||||||||||||||
| Standard works calibration certificate (measuring pointchamber center), °C | +160 | |||||||||||||||||
| Working temperature range, °C | at least 5 (UN/UNplus/UNm/UNmplus) or 10 (UF/UFplus/UFm/UFmplus) above ambient temperature to+300 | |||||||||||||||||
| Setting temperature range, °C | +20 to +300 | |||||||||||||||||
| Setting accuracy, °C | up to 99.9: 0.1 / from 100: 0.5 | |||||||||||||||||
| Electrical load at 230 V, 50/60 Hz, approx. W | 1600 | 2000 | 2500 | 2800 | 3200 | 3400 | - | |||||||||||
| Electrical load at 115 V, 50/60 Hz, approx. W | 1600 | 1700 | 1800 | - | ||||||||||||||
| Electrical load at 400 V and 3 x230 V w/o neutral, 50/60 Hz, approx. W | - | 5800 | 7000 | |||||||||||||||
| Net weight, approx. kg | 45 | 57 | 66 | 74 | 96 | 110 | 161 | 217 | 252 | |||||||||
| Gross weight (packed in carton), approx. kg | 61 | 76 | 85 | 99 | 122 | 161 | 227 | 288 | 416 | |||||||||
| Width, approx. mm | 660 | 730 | 830 | 930 | 1330 | 1370 | ||||||||||||
| Height, approx. mm | 890 | 950 | 1130 | 1050 | 1300 | 1380 | 1440 | 1910 | 1970 | |||||||||
| Depth, approx. mm | 650 | 670 | 800 | 930 | 1050 | 1300 | ||||||||||||
