Product Description

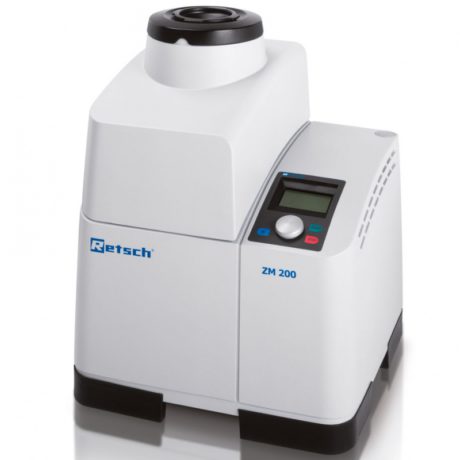

The Ultra Centrifugal Mill ZM 200 is a high speed rotor mill with unmatched performance. It is used for the rapid size reduction of soft to medium-hard and fibrous materials.

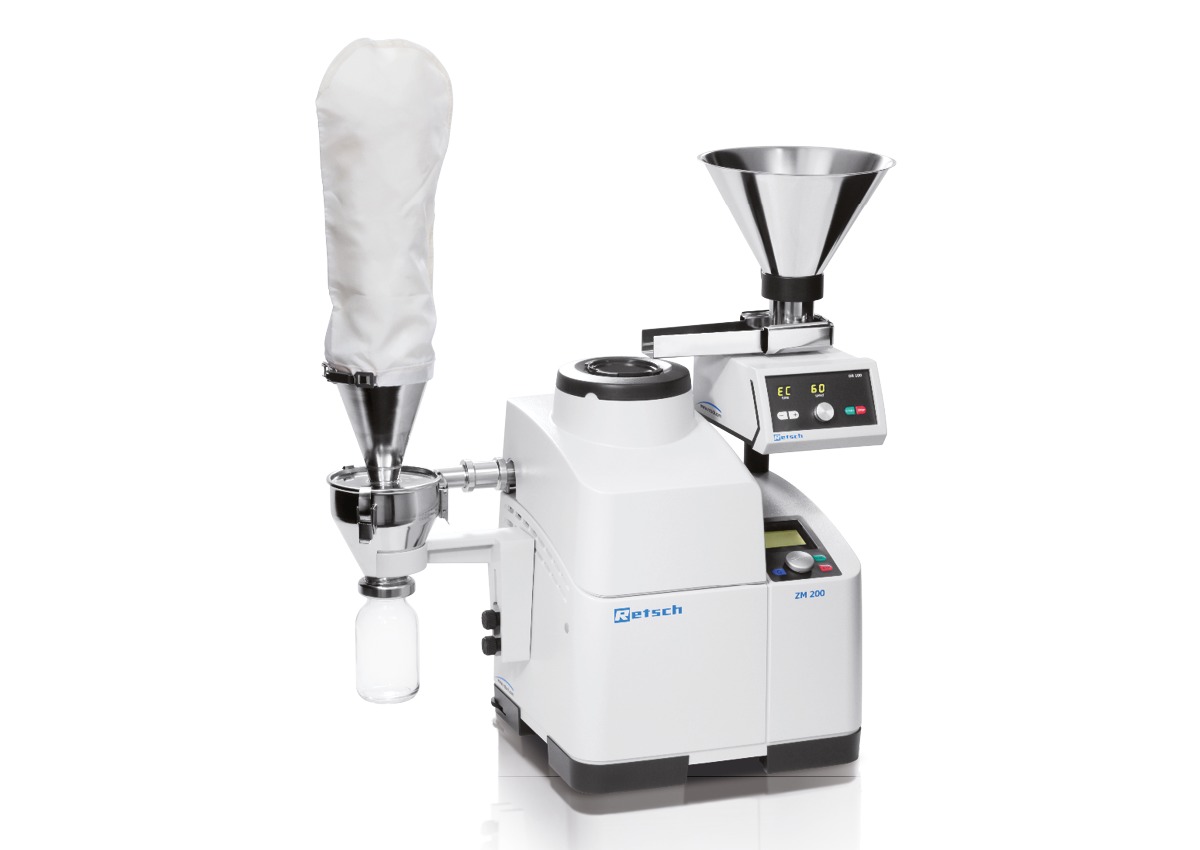

Because of the efficient size reduction technique the ZM 200 ensures the gentle preparation of analytical samples in a very short time. The comprehensive range of accessories including a large variety of ring sieves and rotors as well as collection systems makes the Ultra Centrifugal Mill a versatile instrument that can be easily adapted to varying applications. The optional Vibratory Feeder is load-controlled via an interface and ensures a uniform grind at maximum output rate. When using a cyclone, the sample material is additionally cooled by the air stream and more rapidly discharged from the grinding chamber via the cassette pan with outlet. This effect can be increased by connecting a vacuum cleaner.
With thousands of installations, the ZM 200 has become a standard for food and feeds, for the chemical industry as well as for agricultural testing.
Application Examples
bones, cereals, chemical products, coal, coffee beans, collagen, corn, dried fruit and vegetables, dried larvae, drugs, electronic components, feed pellets, fertilizers, food, minerals, paper, pharmaceutical materials, plant materials, polymers, powder coatings, rice, rubber, seeds, spices, straw, sweets, textiles, tobacco, waste, wood, …
Product Advantages
- Powerdrive with optimally matched frequency converter and 3-phase motor
- gentle and very rapid size reduction by pre- and fine grinding in one run
- wide speed range
- patented cassette system for maximum sample recovery and easy cleaning
- easily exchangeable grinding and sieve inserts
- defined final fineness due to ring sieves with aperture sizes from 0.08 – 10 mm
- comfortable safety housing with automatic cover closure
- motor compartment and electronics protected against dust and material penetration
- comfortable parameter setting via display and ergonomic 1-button operation
- wide range of accessories including various collection and feeding systems, rotors and sieves
