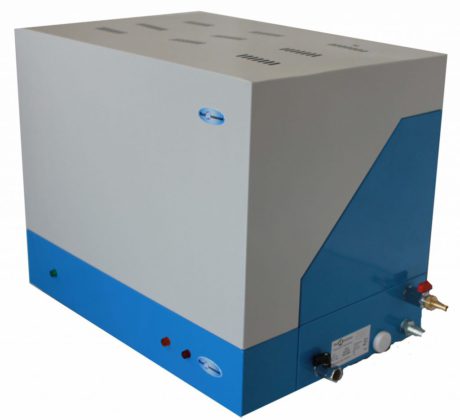

DISTILLER BELAKVILON

Product Description

BELAKVILON distillers are intended for obtaining distilled water from tap water. Water distillers are manufactured in two configurations different in output. AWD-3000F model produces 3 to 3.5 L/hour and AWD-7000F model produces 6.5 to 7 L/hour.

The devices have compact sizes. Distilled water obtained meets GOST 6709-72 standard.

Unique design and safety function with hydraulic temperature controller and two float switches ensure automatic operation. In case of lack of water heating discontinues automatically to protect the heater from overheating. The upper part of the housing and the lids of the tanks are unmounted easily for cleaning the distiller. Thanks to cooling water flow control, it has become possible to save water.

Both models are equipped with a prefilter which protects the distiller, purifying the input water from particulate contamination (sand, rust).

Additional Information

Model

AWD-3000F

Output

3 — 3.5 L/hour

Dimensions (mm), W х D х H

410 х 335 х 490

Heater

3.0 kW

Cooling water consumption, L/hour

 about 30 to 50 L/hour

Material of internal tanks

Mirror stainless steel

Material of housing

Polymer coated low carbon steel

Heater material

Stainless steel

Temperature exceeding control

Hydraulic thermostat RAINBOW TSR-150S F-C

Power supply

230 V ±10%, 50 Hz

Switch

Automatic differential
