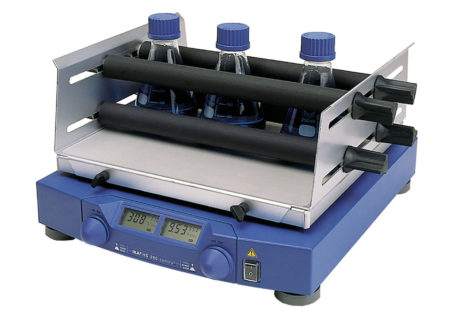

IKA HS 260 Control Horizontal Shaker

Product Description

Compact, flat shaker with ideal swivel motion, for a maximum shaking weight of 7.5 kg.

  • Electronic adjustment of speed and timer
  • Digital display makes it possible to read the speed, timer function and operating modes
  • Electronic time switching clock: 0 – 9 h 59min or continuous operation (endless)
  • With integrated endpoint positioning (for automated robot-controlled sampling)
  • All functions can be controlled and documented with labworldsoft software
  • Special version with reverse rotating direction on request
  • Wide range of attachment combinations makes it possible to use almost all shapes and sizes of vessels
  • Attachments are not included, please order separately

Additional Information

Type of movement

reciprocating

Shaker diameter [mm]

20

Permissible shaking weight (incl. attachment) [kg]

7.5

Motor rating input [W]

45

Motor rating output [W]

10

Permissible ON time [%]

100

Speed range [rpm]

10 – 300

Speed display

LCD

Timer

yes

Timer display

LCD

Time setting range [min]

1 – 599

Operating mode

timer and continuous operation

Shaking table lock

yes

Dimensions (W x H x D) [mm]

360 x 100 x 420

Weight [kg]

8.8

Permissible ambient temperature [°C]

5 – 50

Permissible relative moisture [%]

80

Protection class according to DIN EN 60529

IP 21

RS 232 interface

yes

Analog output

yes

Voltage [V]

220 – 240 / 100 – 120

Frequency [Hz]

50/60

Power input [W]

45
