Product Description

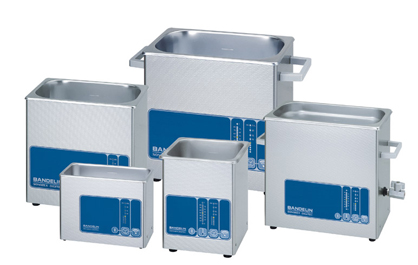

Ultrasonic baths
The new generation
- full convenience in use and display for all bath types
- easy to operate – self-explanatory symbols well recognizable parameters,
- target as well as actual values – brightly lighting LED-display
- 4-step-operation as “plug and clean”
- heater 20-80 °C, thermostatically adjustable, with LED-display for target value and actual value of temperature
- optical signal in case of excess temperature
- timer for countdown and continuous operation
- DEGAS: adjustable pulse sound level for removing unwanted air bubbles, visible at LCD-display
- automatic short-time ultrasound during heating
- up period to avoid delay in boiling – switch-off possible
- CE marked as medical device
- quality management system according to the requirements of EN ISO 13485/11.2000 in the production line
- protection class IP 33 at highest possible level through liquid-tight mains cable and housing front without openings.
- SweepTec for permanent sound field oscillation ensures even and gentle cleaning
- utility patent DE 202 21 041
- automatical safety shut-down 12 hours after last keypress
- marking of filling level for safe dosage
- one-piece welded drain bow
- Transducers with high efficiency
| Internal tank dimensions (l × w ×d) | Capacity | Type | Code No. | External dimensions (l × w × d) | Drain ball valve | Ultrasonic peak output* | Ultrasonic nominal output | Heating power | Weight, kg |
|---|---|---|---|---|---|---|---|---|---|

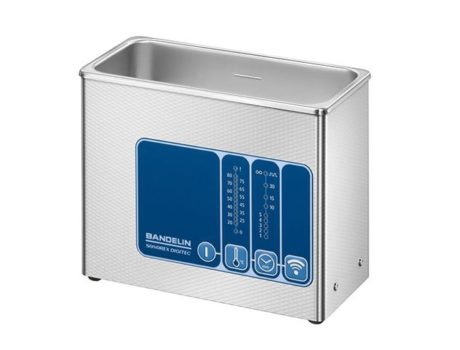

| 190x85x60 | 0,9 0,9 | DT 31 DT 31 H | 3200 3220 | 205x100x170 | — — | 240 240 | 30 30 | — 70 | 1,8 1,9 |
| 150x140x100 | 1,8 1,8 | DT 52 DT 52 H | 3205 3225 | 175x165x230 | — — | 240 240 | 60 60 | — 140 | 2,6 2,9 |
| 240x140x100 | 3,0 3,0 3,0 | DT 100 DT 100 H DT 102 H | 3210 3230 3235 | 260x160x250 | — — ¼” | 320 320 480 | 80 80 120 | — 140 140 | 3,4 3,6 4,3 |
| 240x140x150 | 4,0 | DT 103 H | 3201 | 260x160x310 | ¼” | 560 | 140 | 200 | 4,6 |
| Ø240х130 | 5,6 | DT 106 | 3270 | Ø265×270 | ¼” | 480 | 120 | — | 5,5 |
| 500x140x100 | 6,0 | DT 156 | 3275 | 530x165x245 | ¼” | 640 | 160 | — | 6,1 |
| 500x140x150 | 9,0 | DT 156 ВН | 3221 | 530x165x300 | ¼” | 860 | 215 | 600 | 7,3 |
| 300x150x150 | 5,5 5,5 | DT 255 DT 255 H | 3215 3240 | 325x175x295 | ¼” ¼” | 640 640 | 160 160 | — 280 | 5,2 5,3 |
| 300x240x150 | 9,7 9,7 | DT 510 DT 510 H | 3245 3206 | 325x265x305 | ½” ½” | 640 640 | 160 160 | — 400 | 7,0 7,6 |
| 300x240x200 | 13,0 | DT 512 H | 3226 | 325x265x350 | ½” | 860 | 215 | 400 | 8,0 |
| 325x300x150 | 13,5 13,5 | DT 514 DT 514 H | 3250 3211 | 355x325x305 | ½” ½” | 860 860 | 215 215 | — 600 | 8,2 8,8 |
| 325x300x200 | 18,7 | DT 514 BH | 3216 | 355x325x385 | ½” | 860 | 215 | 600 | 9,8 |
| 500х300х200 | 28,0 | DT 1028 DT 1028 Н | 3255 3231 | 535х325х400 | ½” ½” | 1200 1200 | 300 300 | — 1300 | 14,3 14,7 |
| 500х300х300 | 45,0 | DT 1028 СН | 3266 | 540х340х500 | ½” | 1200 | 300 | 1450 | 23,7 |
| 600х500х200 | 58,0 | DT 1050 | 3265 | 655х535х425 | ½” | 2400 | 600 | — | 31,0 |
| 600х500х300 | 90,0 | DT_1050_СН | 3271 | 640х540х530 | ½” | 2400 | 300 | 1950 | 37,0 |
