Product Description
A laboratory water bath with the highest degree of safety
The Memmert waterbath is available in six model sizes and two performance classes. In addition to the Basic class for standard temperature control tasks, the Excellent version provides precise test procedures with a maximum of safety: electronic overtemperature control and a wide range of visual and acoustic signals; for example if the filling level is too low, for overtemperature, but also for input acknowledgement or to signalise the end of the programme. In the largest model, an optional circulation pump provides an even better thermal uniformity of the water.

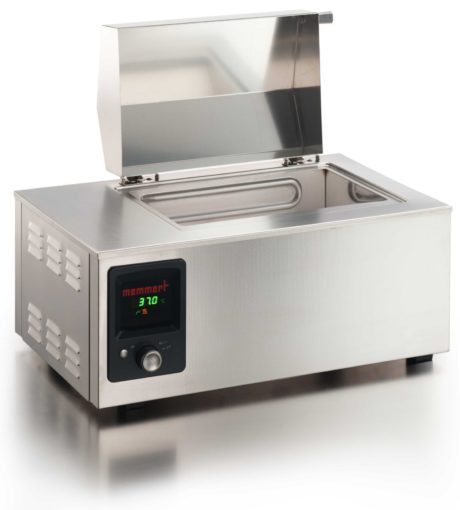

Waterbath WNB / WNE
| Model sizes/Description | 7 | 10 | 14 | 22 | 29 | 45 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Contents, approx. I (interior) | 7 | 10 | 14 | 22 | 29 | 45 | |||||
| Length, (A) mm (interior) | 240 | 350 | 590 | ||||||||
| Width, (B) mm (interior) | 210 | 290 | 350 | ||||||||
| Height, (C) mm (interior) | 140 | 220 | 140 | 220 | |||||||
| Length, (D) mm (exterior) | 468 | 578 | 818 | ||||||||
| Width, (E) mm (exterior) | 356 | 436 | 516 | ||||||||
| Height (with flat cover), (F) mm (exterior) | 238 | 296 | 238 | 296 | |||||||
| Height (with gable cover), (G) mm (exterior) | 337 | 347 | 405 | 343 | 401 | ||||||
| Liquid level min., (H) mm | 97 | 177 | 105 | 177 | |||||||
| Liquid level max., (I) mm | 120 | 200 | 120 | 200 | |||||||
| Working temperature range, °C | at least 5 (WNB/WNE) 15 (WPE) above ambient to +95 and additionalboiling stage (WPE only with pump switched off) | ||||||||||
| Setting temperature range, °C | +10 to +95 and boiling stage | ||||||||||
| Temperature variation, K | +/- 0.1 | ||||||||||
| Temperature distribution, K | +/- 0.25 | +/- 0.3 | |||||||||
| Electrical load at 230 V, 50/60 Hz / 115 V, 50/60 Hz, WPE: 50 Hz, approx. W | 1200 | 1800 | 2000 | 2400 | 2800 | ||||||
| CDP115: Dimensions of casing height/width/depth, approx. mm | 185/450/200 | ||||||||||
| CDP115: Electrical load at 230 V/115 V, 50/60 Hz, max. W | 160 | ||||||||||
| CDP115: Effective cooling capacity, W | 115 | ||||||||||
| CDP115: Pumping capacity of circulation pump for coolant, ml/Min | 600 | ||||||||||
| Portable stainless steel rack for 10 baby food bottles, maximumcapacity each bat, max. | - | 1 | 2 | - | 4 | - | |||||
| Bath capacity - number of racks: models 10/14/22 width of bath working area less 20 mm : width ofthe racks models 29/45 length of bath working area less 20 mm : width of theracks | ● | ||||||||||
| Net weight (with one cover option), approx. kg | 11 | 13 | 15 | 17 | 24 | 26 | |||||
| Gross weight in Triwall carton, approx. kg | 16 | 19 | 21 | 23 | 31 | 33 | |||||
| Length, approx. mm | 570 | 670 | 910 | ||||||||
| Width, approx. mm | 450 | 530 | 610 | ||||||||
| Height, approx. mm | 420 | 380 | 400 | 460 | 400 | 460 | |||||
