Product Description
Water baths made of high quality stainless steel. During the manufacturing process all the parts are chemically and mechanically polished which allows avoiding dangerous corrosion as the device is intended for continuous contact with water. A great attention is also paid to functional properties of the baths. All the models are equipped with a microprocessor PID-controller, Pt 100 platinum temperature sensor, and a digital display showing set and actual values of temperature. Heating elements are optimally placed within the housing of the bath which allows uniform heating of water throughout the bath volume. Protection from heating above the temperature set, from overheating and from complete evaporation of water is implemented.

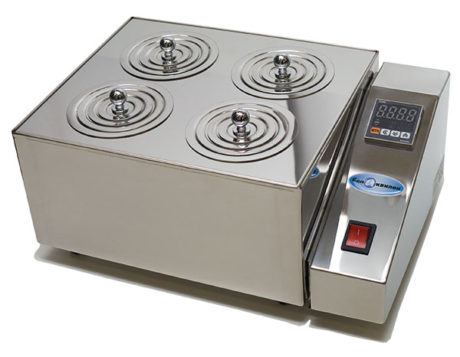

BELAKVILON water baths
| WB-4 | WB-4K | WB-6 | WB-6K | WB-8 | |||||
|---|---|---|---|---|---|---|---|---|---|
| 4-place | 6-place | 8-place | |||||||
| Material of housing, level block, control panel, dissector and panel | Grade 304 mirror stainless steel | ||||||||
| Heating tubes | Stainless steel | ||||||||
| Measuring sensor type | Resistance thermometer detector | ||||||||
| Graduation of measuring sensor | Pt 100 (1.385) | ||||||||
| Controller, model | Autonics TC4S-24R | ||||||||
| Temperature regulation | PID | ||||||||
| Temperature setting range, °С | +35…+95 | ||||||||
| Temperature error, °С | ±1.0 | ||||||||
| Protection from overheating | Hydraulic thermostat | ||||||||
| Voltage supply, V | 230+-10% | ||||||||
| Input current, A | 3.3 | 6.5 | |||||||
| Power demand, W | 750 | 1500 | |||||||
| Exterior dimensions L х W х H, mm; | 380 х 300 х 190 | 380 х 325 х 260 | 450 х 300 х 190 | 450 х 325 х 260 | 550 х 300 х 190 | ||||
| Exterior dimensions of bath L х W х H, mm | 290 x 300 x 140 | 290 х 300 х 205 | 360 х 300 х 140 | 360 х 300 х 205 | 460 х 300 х 140 | ||||
| Total / working volume, L | 12.0/9.0 | 17.6/14.6 | 14.9/11.2 | 21.9/18.1 | 19.1/14.3 | ||||
