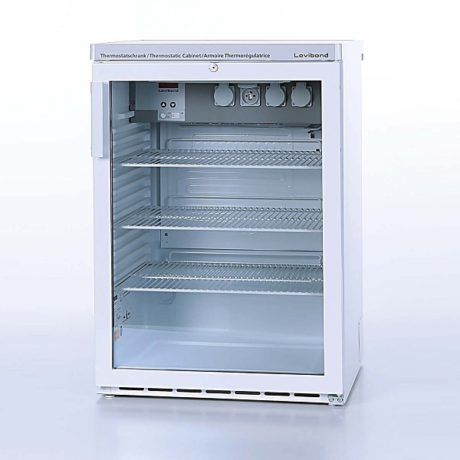

TC 140 G — laboratory dry-air thermostat Lovibond

Product Description

Perfect for a number of different applications in industry and research. The temperature of the thermostatically controlled cabinets can be regulated individually in the smallest of steps – and an LED display keeps the status quo under control at all times. There are six models available with different useful contents and glass or steel doors.

Versatile in use
Our thermostatically controlled cabinets are the means of choice both for temperature-controlled storage of samples and for BOD determination in waste water analysis. The integral temperature control unit meets EMC directive IEC 61326 (“Electrical devices for measurement, monitoring and for use in laboratories”).

Continuous temperature control
The thermostat cabinets allow continuous temperature control. Over a range of 2-40 °C the temperature can be set in steps of 0.1 °C.

Internal power connections
The use of external devices is no problem thanks to several sockets installed in the interior.

Energy efficiency
The highly efficient components and reinforced insulation provide low consumption values.

Variable
You can choose between 4 models with steel door (135, 175, 255 and 445 l net capacity) and 2 models with glass door (140 and 235 l net capacity).

Additional Information

Display

Backlit LED display

Power Supply

220 – 240 V / 50 Hz

Net Capacity

140 l

Consumption

approx. 1,61 kWh/ 24h

Climate Class

SN, + 10 °C to + 32 °C

Coolant

R600a

Sockets

4

Temperature Range

+ 2 °C to + 40 °C, steps of 0,1 °C

Temperature Tolerance

± 1 °C, specified for a stirred 500 ml water sample. For BOD (T=20 °C ±0,5 °C)

Interior Light

LED light strip

Storage Space

3 metal grids + 1 bottom grid

Shelf Loading Capacity

45 kg

Suitable to build under

Yes

Further Equipment

Standard Door

Dimensions Internal

513 x 702 x 441 mm

Dimensions without Work Top

600 x 819 x 600 mm

Compliance

CE

Dimensions

600 x 850 x 600 mm

Weight

48 kg
